DFRobot Infrared Temperature Sensor - Non Contact Infrared Thermometer - Temperature Measurement Devices - TS01 IR Thermal Sensor 4-20mA Compatible with Arduino, Raspberry Pi and Micro:bit

DFRobot TS01 IR Thermal Sensor 4-20mA>IntroductionThis TS01 IR Thermal Sensor 4-20mA is an infrared thermometer designed for non-contact temperature measurement, it has similar functions of mlx90614 IR temperature sensor.FeaturesNon-contact Temperature MeasurementOperating Temperature Range of Industrial GradeCurrent OutputMental PackagingSpecificationSupply Voltage: 7.5~36V DCOperating Current: 20mASignal Output: 4~20mAOperating Temperature: -40℃~85℃Measuring Temperature: -70℃~380℃Accuracy: ±0.5℃~±4℃FOV: 5°Defense Grade: IP65Probe Diameter: 15.4 mm/0.61”Probe Length: 78 mm/3.07”Cable Length: 1.5m/59.06”Interface Type: stripped tin-plating wireShipping listTS01 IR Thermal Sensor 4-20mA（SEN0264） x1

• DFRobot TS01 IR Thermal Sensor is a remote non-contact sensor, which can be used to measure the infrared intensity of the object so as to calculate its surface temperature without touching. The built-in temperature compensation for the sensor greatly ensures the accuracy of the temperature measurement.

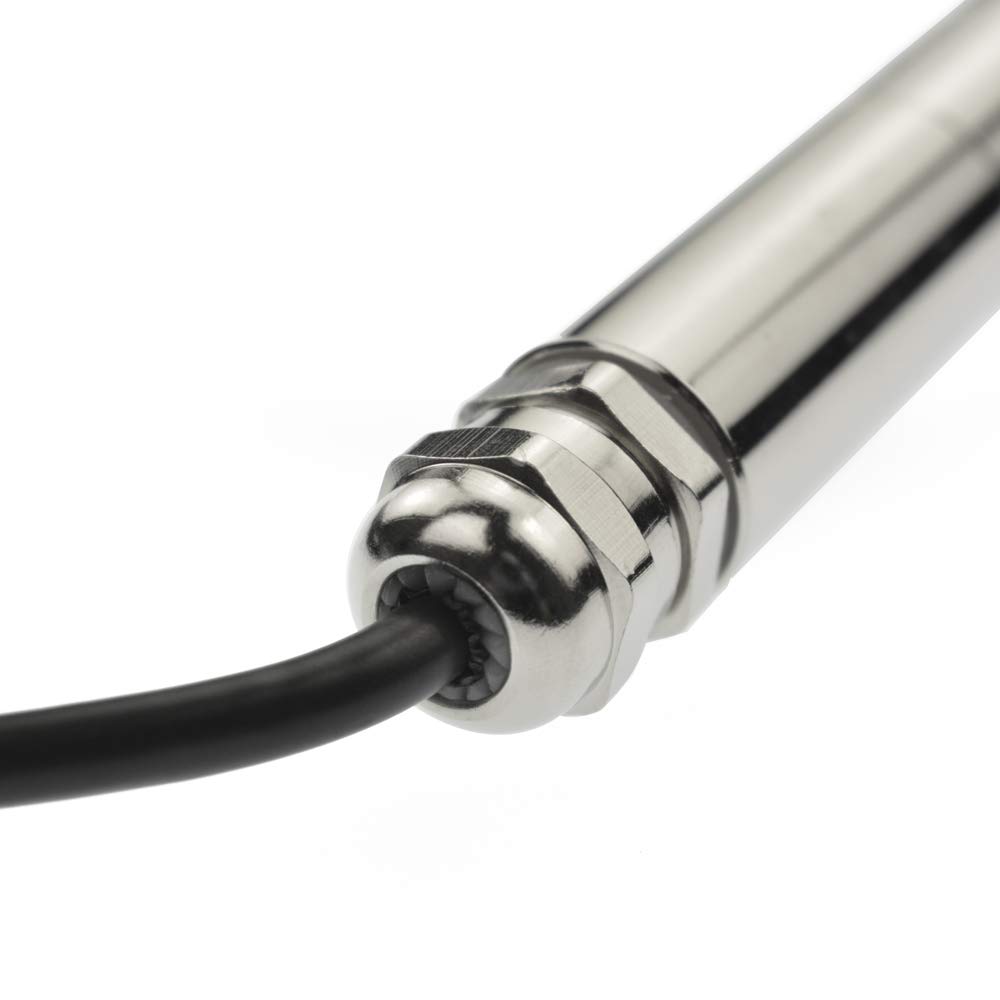

• The all mental package of the sensor makes it able to protect against impact, water, dust and so on. Given stable output data, this temperature sensor can exhibit a much better measurement performance than most other similar products on the market. The product has been calibrated in wide temperature range before leaving the factory.
• With an operating temperature of -40℃-85℃, the sensor can be used to measure the temperature of -70℃~380℃ while providing a maximum accuracy of 0.5°C.
• An optical filter (long-wave pass ) that cuts off the visible and near infra-red radiant flux is integrated in the package to provide ambient and sunlight immunity. Its FOV is small as 5°， which means for a heat source of 10cm outer diameter, the maximum measuring distance of the sensor can reach up to 116cm.
